Product Description

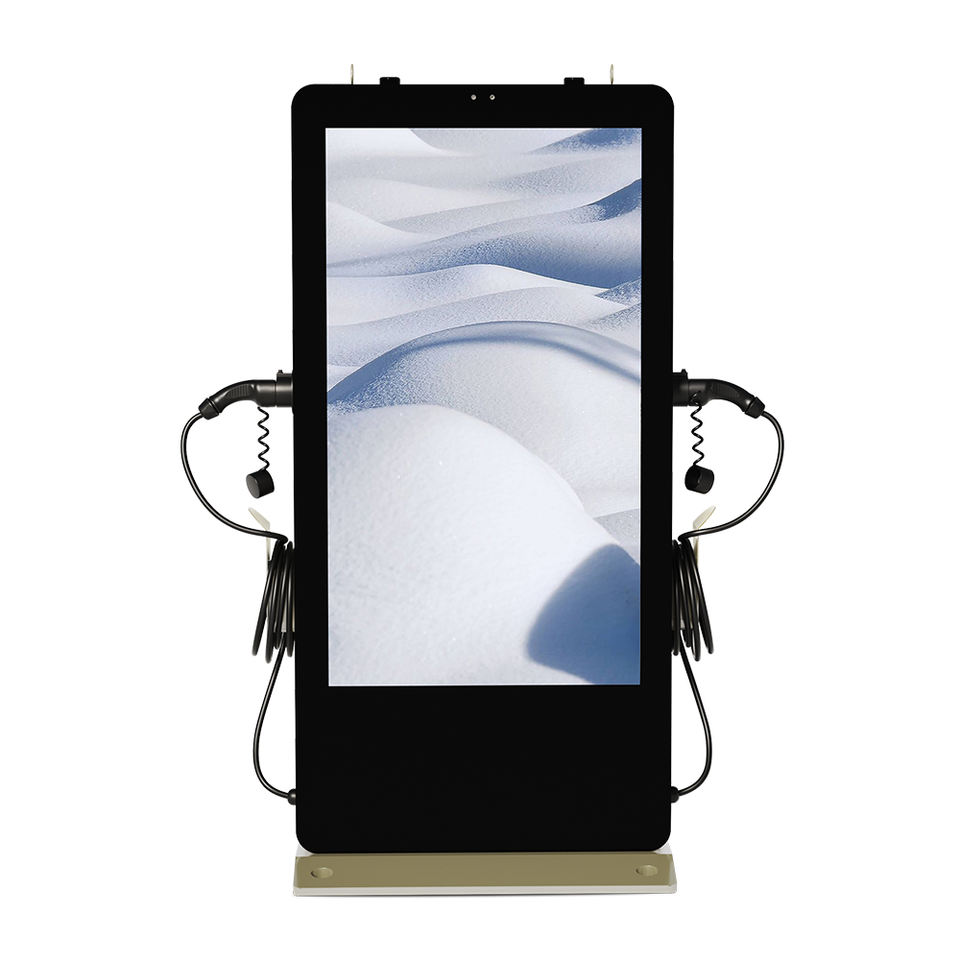

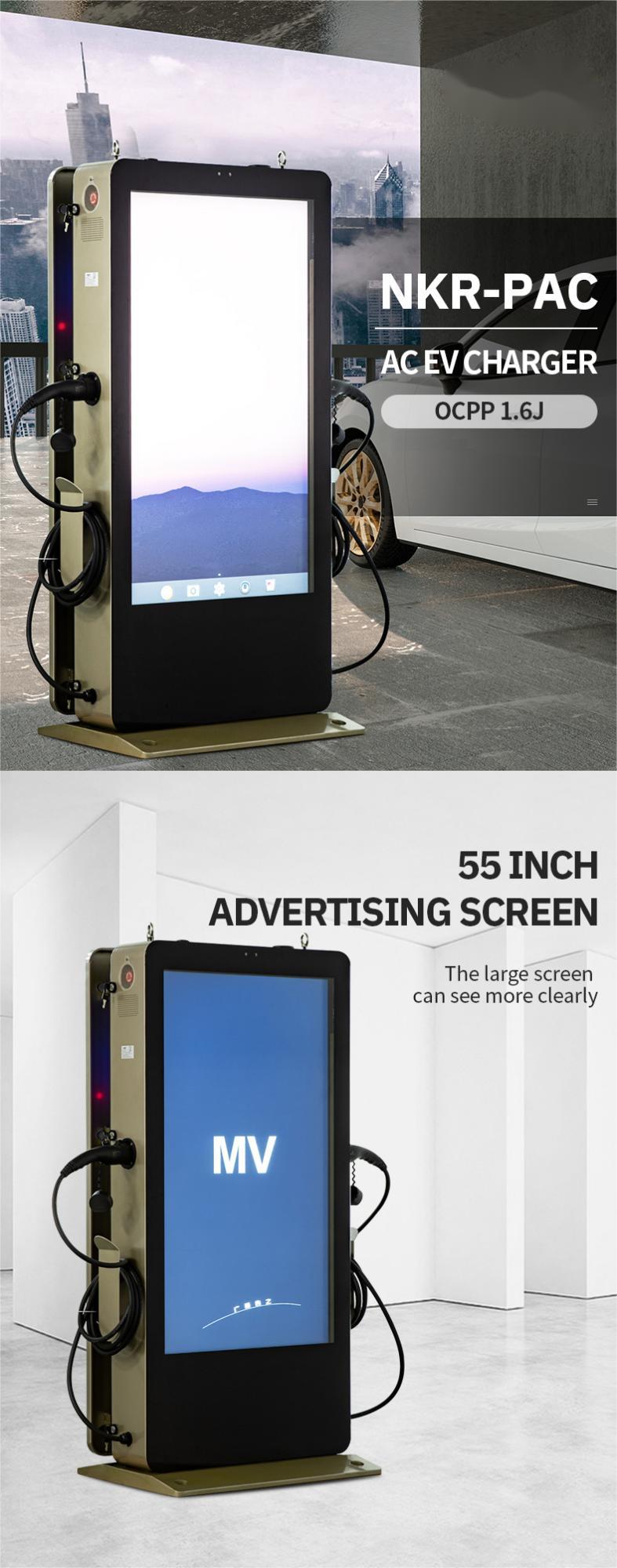

The EV charger is an AC EV charger for commercial use. It uses a 55-inch large-screen display, which can play advertisements while charging, and has high commercial value.The whole machine adopts dustproof and waterproof design, and the protection level reaches IP54, which is not afraid of high temperature and low temperature. It is suitable for commercial squares, charging stations, office buildings and other scenarios.
Product features:

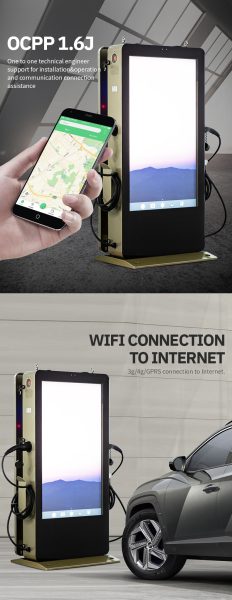

♦.OCPP1.6J+
♦.Type B RCD
♦.All components come with CE certificate.
♦.5 Inch touch screen and 55 inch advertisement screen
♦.RFID &Credit card payment
♦.MID meter
♦.APP operation
♦.Ethernet&WIFI&4G
♦.Remote monitor &appointment &diagnosis &upgrade
♦.Type B RCD
♦.All components come with CE certificate.
♦.5 Inch touch screen and 55 inch advertisement screen
♦.RFID &Credit card payment
♦.MID meter
♦.APP operation
♦.Ethernet&WIFI&4G
♦.Remote monitor &appointment &diagnosis &upgrade
Specification
|
Electrical Features |
Rated power
|
Type2:7/22/43kw
Type1:9kw |
|
Input
|
Single phase:230V±10%
Three phase:400V±10% |
|
|
Output Voltage
|
100VAC-400VAC+/-20%
|
|
|
Output Current
|
Type2:7kw-single phase 32A
22kw-three phase 32A 43kw-three phase 64A Type1:9kw-single phase 40A |
|
|
Functional Features
|
User Interface
|
Emergency Stop/LED indicator/RFID
|
|
RCD
|
Type B:30ma ac and 6ma dc
|
|
|
Safety Features
|
Overvoltage/undervoltage protection, overload protection, leakage protection, Overcurrent protection
|
|
|
Working environment |
Working latitude
|
<2000m
|
|
Working temperature
|
-30° C～+55° C
|
|
|
Working humidity
|
5 %~ 95%
|
|
|
Protection level
|
IP55
|
|
|
Cooling
|
Natural cooling
|
|
|
Safety standards
|
IEC61851-1/2017
|
|
|
Special protection
|
Anti-UV protection
|
|
|
LCD Panel |
Panel size
|
55 inch
|
|
Maximum resolution
|
1920×1080
|
|
|
Brightness(nits)
|
2500nits
|
