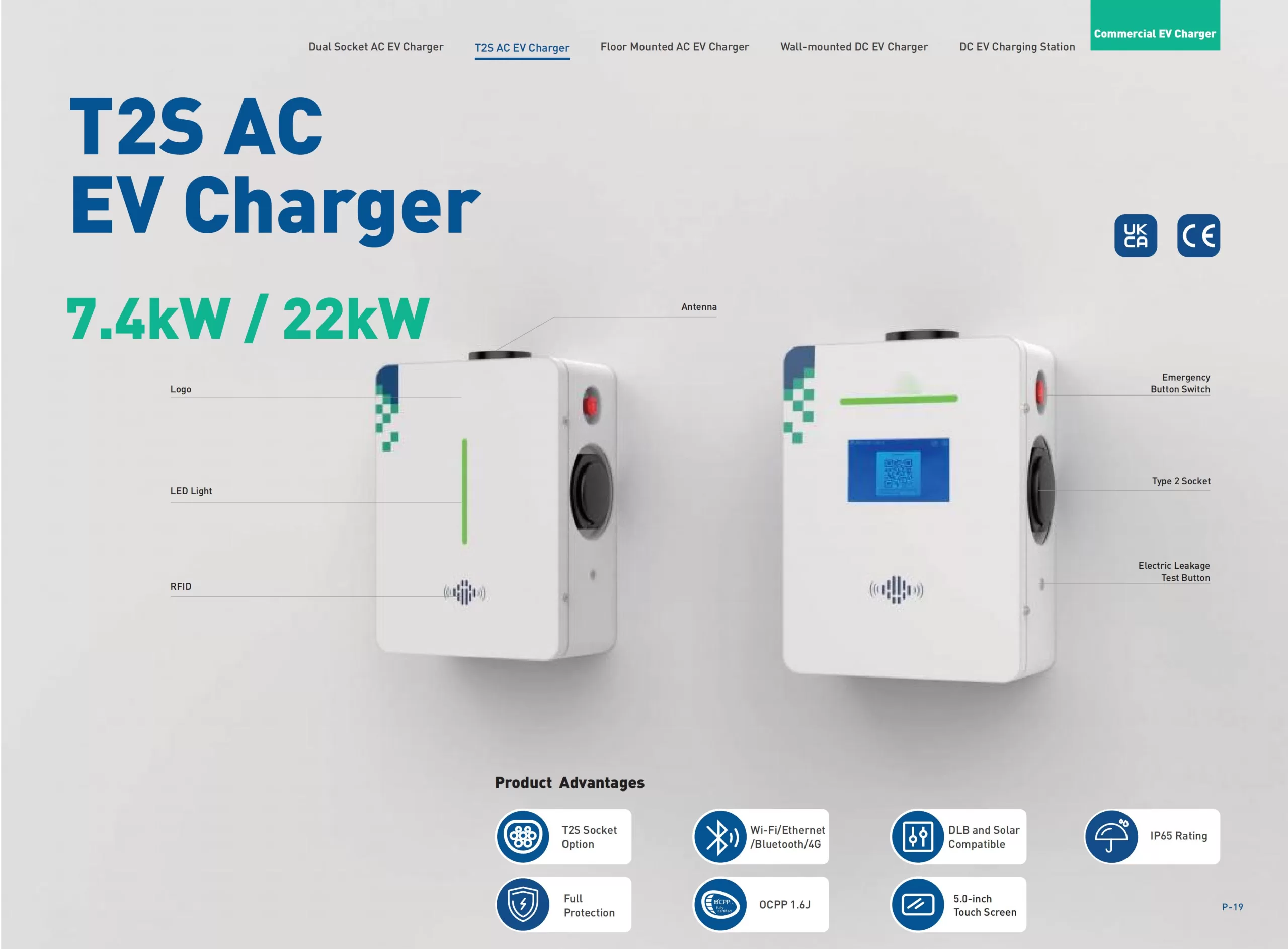

22KW Wallbox with T2S socket option
22KW Wallbox with T2S socket option
3 Phase OCPP,Wall-mounted, Metal Enclosure
Working Voltage :AC(400V±10％) 3 Phase Max Power:22KW
Max Current:32A Working Frequency:50/60HZ IP65
* 2 RFID Cards
* T2S Socket (1 Socket)
* Wifi/Bluetooth/Ethernet/4G Connection
* Charging Protocol OCPP1.6J
* 5 inch LCD Screen
* Built-in MID meter
* Built-in 4P 30mA 40A Type A RCCB

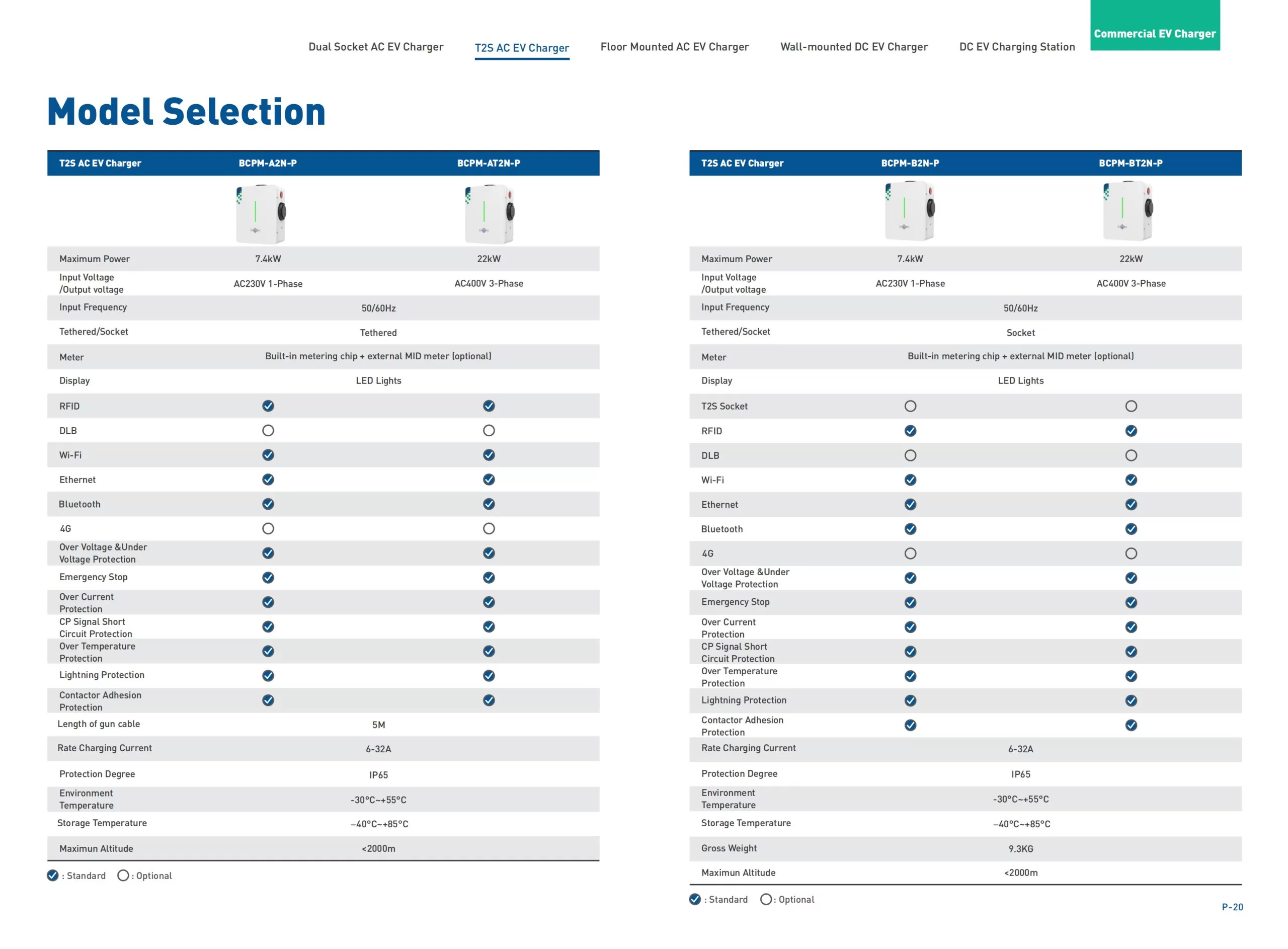

SPECIFICATION
| Wallbox Models | BCPCM-B2N-P | BCPCM-BT2N-P |
| Maximum Power | 7.4KW | 22KW |
| Input voltage/Output voltage | 1-PHASE AC230±15%L, N, PE |
3-PHASE AC400±15%L3, L2, L1, N, PE |
| Input frequency | 50Hz/60Hz | |
| Tethered/Socket | T2/T2S | T2/T2S |
| Meter | Built-in Electric Meter | |
| Display | Five-inch LCD Screen+LED Lights | |
| Frequency | 50Hz/60Hz | |
| Rate Charging Current | 6-32A | |
| Cable Length | 5M | |
| Standby Power Consumption | 4G:<8W Wi-Fi:<6W | |
| Operating Temperature | -30°C ~ 55°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Operating Humidity | 5%-95% | |
| IP Protection | IP65 | |
| Safety Protection | Leakage Protection, Over Current Protection, Ground Protection, Over Voltage Protection, Under Voltage Protection, Contactor Adhesion Protection, Neutral and Live Wire Reverse Connection Protection, Over Temperature Protection, CP Signal Abnormal Protection, Lightning Protection |
|
| Operating Altitude | <2000M | |
| Charger Dimension | Height:360mm Width:278mm Depth:152mm | |
| Gross Weight | 9.3KG | |
| Leakage Detection | TYPE A+DC6mA leakage sensor built-in | |
